Automatic feeding
Brushes travel into the rotary fixtures.
YB-5in / Paint brush packaging
One brush.
One automated
packaging solution.
Bring feeding, film wrapping, sealing and shrinking together. A rotary packaging machine designed for paint brushes from 1 to 5 inches.
YOMACH / YB-5inAUTOMATIC PACKAGING

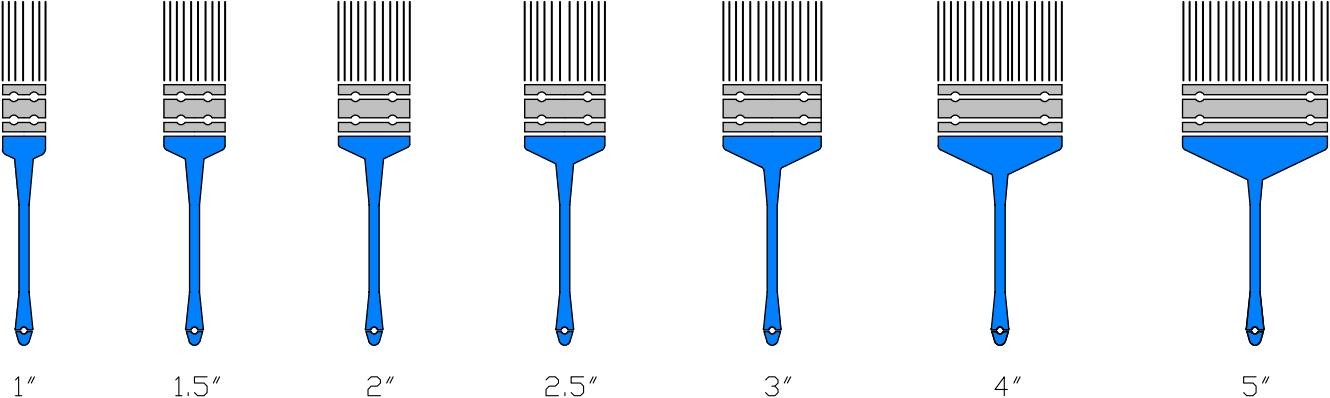

1–5 inchesBrush size range
25–30 pcs/minOutput depends on brush size
8 stationsRotary packaging system
Machine in action
Watch the packaging process.
See the machine operating in the demonstration video supplied by YOMACH.
Playback starts at 00:19. If the player is unavailable, open the video directly on YouTube.
Watch on YouTube ↗The complete process
From brush feeding
to finished packaging.
A feeding rack delivers brushes into the rotary fixtures. Each indexed movement carries the brush through film wrapping, heat sealing and cutting, bag-top flattening and heat shrinking, before discharge onto the conveyor.
Film wrapping
The brush rotates into the POF roll film.
Seal & cut
Heat sealing and cutting form the package.
Bag-top flattening
The top of the film bag is automatically flattened.
Heat shrinking
Two successive shrinking stations finish the film.
Conveyor discharge
The packaged brush exits onto the discharge conveyor.
Machine layout
See how the stations fit together.
A top-view reference of the rotary platform and its packaging mechanisms.
Reference layout supplied with the machine documentation. Conveyor directions and the final production-line configuration are confirmed during technical review. Click the diagram to enlarge; on mobile, scroll sideways in the enlarged view.
Inside the machine
Purpose-built.
Down to the details.
Explore the mechanisms that bring the packaging process together.
01 / ROTARY PLATFORMEight-station rotary system
Fixtures carry the brushes through the automatic packaging sequence.
02 / MATERIAL HANDLINGAutomatic brush feeding
A conveyor guides brushes into the packaging platform.
03 / FILM HANDLINGAutomatic roll-film feed
Roll film is supplied to the wrapping and sealing mechanism.
04 / ADJUSTMENTAdjustable film width
Adjust the film setup to suit the brush and packaging requirement.
05 / CONTROLSMitsubishi control system
A Mitsubishi operator panel provides the machine control interface.
06 / SHRINKINGU-shaped heat-shrink tunnel
An integrated three-position U-shaped tunnel supports the shrinking stage.
Your brush. Your packaging.
Start with the
finished result.

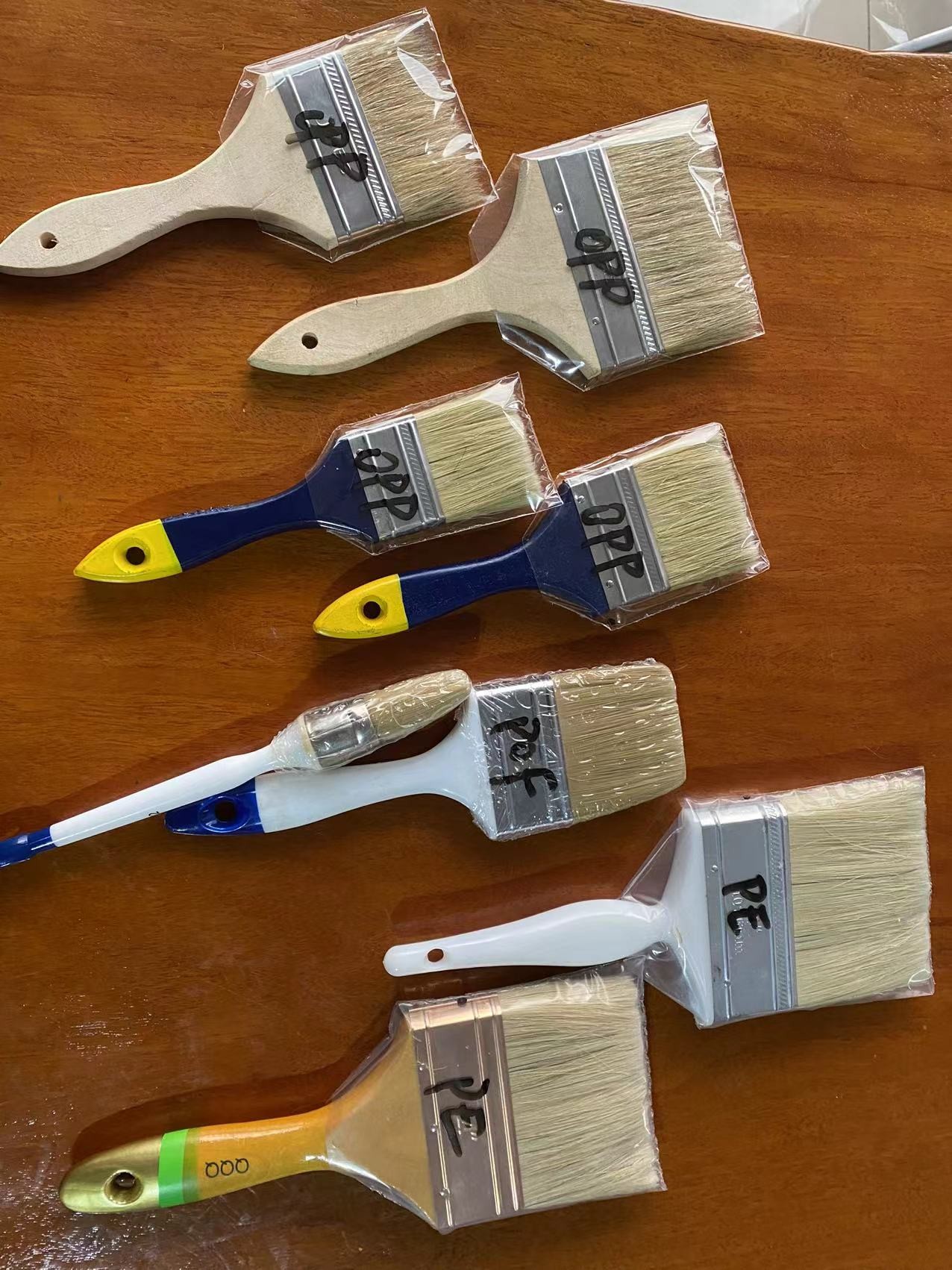

The machine documentation lists POF, OPP and PE roll-film options. Send us your brushes and the finish you need so we can confirm the film and settings for your application.
Film performance and suitability must be confirmed with your samples. The illustrated shrinking sequence uses POF film.
Arrange a sample test ↗Technical specifications

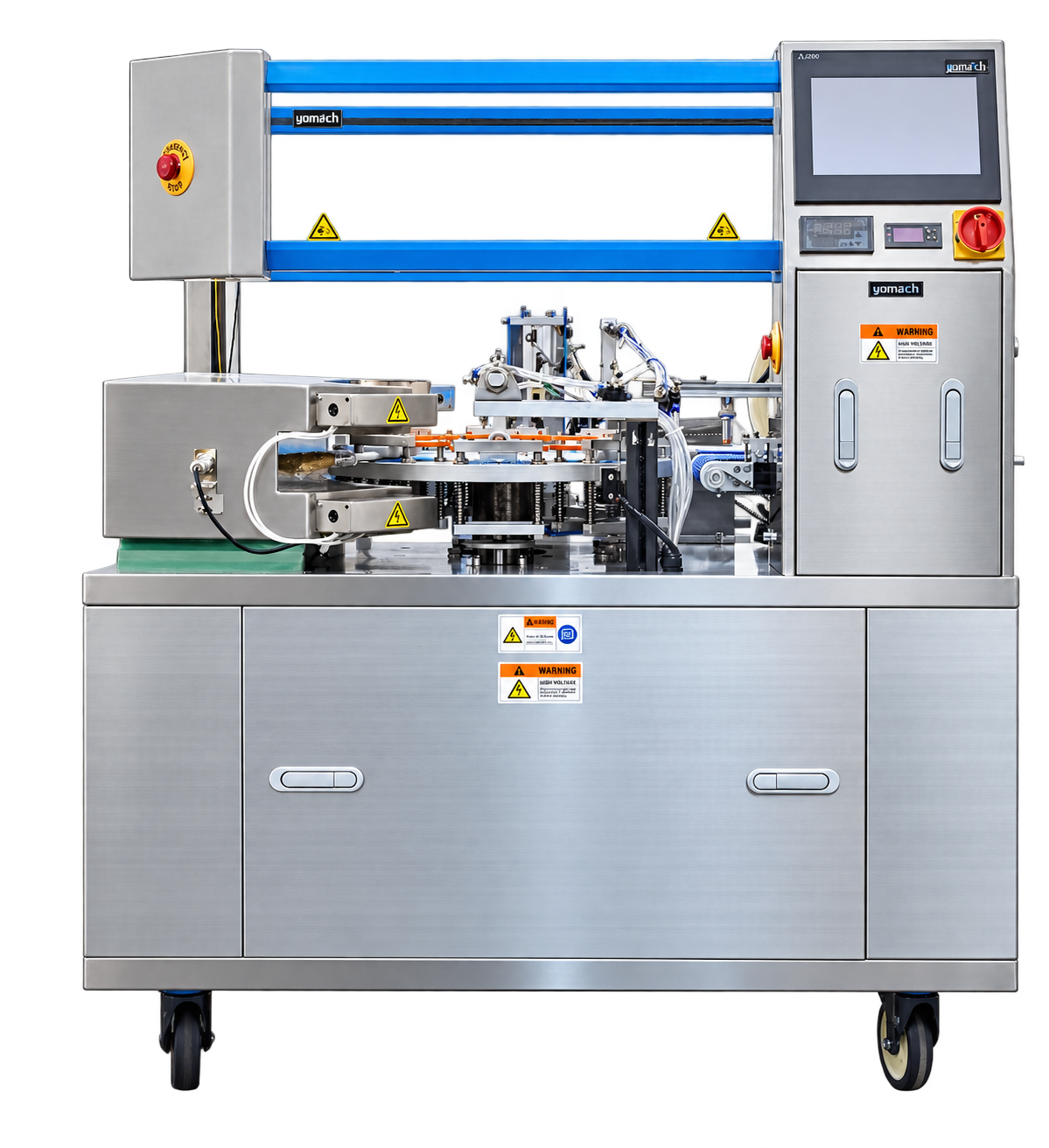

Meet the YB-5in.
A compact automatic packaging platform for paint brushes. Confirm the configuration with our team before ordering.
Specifications are based on the supplied product documentation. Actual output depends on brush size, film and setup.
| Model | YB-5in |
| Brush size | 1–5 inches |
| Packaging speed | 25–30 pcs/min |
| Rated output | Up to 1,800 pcs/hour |
| Voltage | AC 220 V |
| Total power | Approx. 6.0 kW |
| Air pressure | 0.6–0.8 MPa |
| Dimensions | 1,500 × 1,500 × 1,700 mm |
| Machine weight | Approx. 300 kg |
| Max. film roll diameter | Ø 300 mm |
Sample testing & acceptance
Verify the machine
with your own brushes.
Sample testing and remote video acceptance help your technical team understand the equipment before shipment.
Send brush samples
Before completion, we request your brush samples to test the machine with the products you actually package.
Review by live video
After commissioning, we arrange remote video acceptance so your team can review machine operation and the packaging result.
Learn the operation
Your designated technicians receive guidance on setup, operating steps, precautions, daily maintenance and troubleshooting.
Common questions
Before you choose
your machine.
Which brushes can the machine package?
The documented size range is 1–5 inches. Send photos, dimensions and physical samples so we can confirm suitability for your brush shape and handle.
Does it use pre-made bags?
The machine uses roll film rather than pre-made bags. POF, OPP and PE options are listed in the product documentation; the final choice should be confirmed by sample testing.
Can the machine connect to other equipment?
The supplied layouts show possible conveyor connections. Share your production-line layout, upstream equipment and available space so we can discuss the interface.
What maintenance is required?
The cutter and shrink tunnel require routine attention. Silicone strips and heat-resistant cloth are listed as wearing parts. We explain maintenance and replacement during technical handover.
How do we check the machine before shipment?
We test using your samples and arrange remote video acceptance after commissioning, including operational and maintenance guidance for your technicians.
Let's talk packaging
Tell us about
your paint brushes.
Share your brush size, film preference and target output. We will help confirm a suitable packaging configuration.
